Elsema 433Mhz Remote Contactor Tripping Base Kit (For Single Remote Location)

Elsema 433Mhz Remote Contactor Tripping Base Kit (For Single Remote Location)

PRODUCT CODE: 433KIT

* Typically used for remote tripping of a contactor in conjunction with a network protection relay or generator ATS

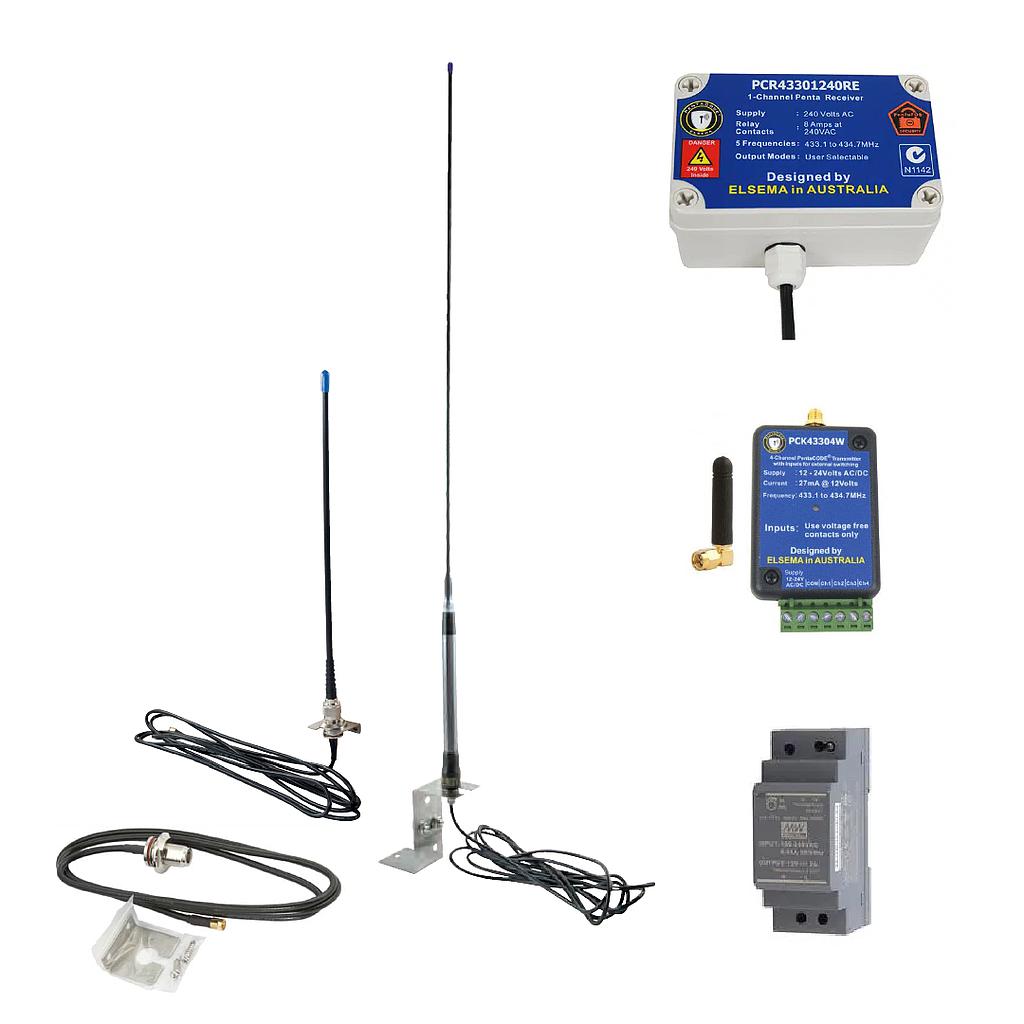

* Kit includes: 1x 433Mhz Transmitter (PCK43304W), 1x 433Mhz Receiver (PCR43301240RE), 1x Long Range Antenna (ANT433M), 1x Medium Range Antenna (ANT433S), 1x Antenna Extension Cable (AB10.0SMA), 2x 240V General Purpose relays (39.01.8.230.0060) and 1x 24V DC Din Mount Power Supply (HDR-30-24)
* For other remote locations purchase additional receiver kits (433KITREC)
* Products are not pre-programmed
* Kit excludes contactors
* Operating range of up to 500m with a Line-of-sight
* Frequency hopping between 433.100 to 434.700 MHz to minimize risk of interference
Contact Us

Supply Partner's solution for achieving remote contactor tripping in conjunction with a network protection relay or a generator ATS. This kit is suitable for a single remote inverter, but can be expanded upon with the addition of 433KITREC per additional remote inverter.
