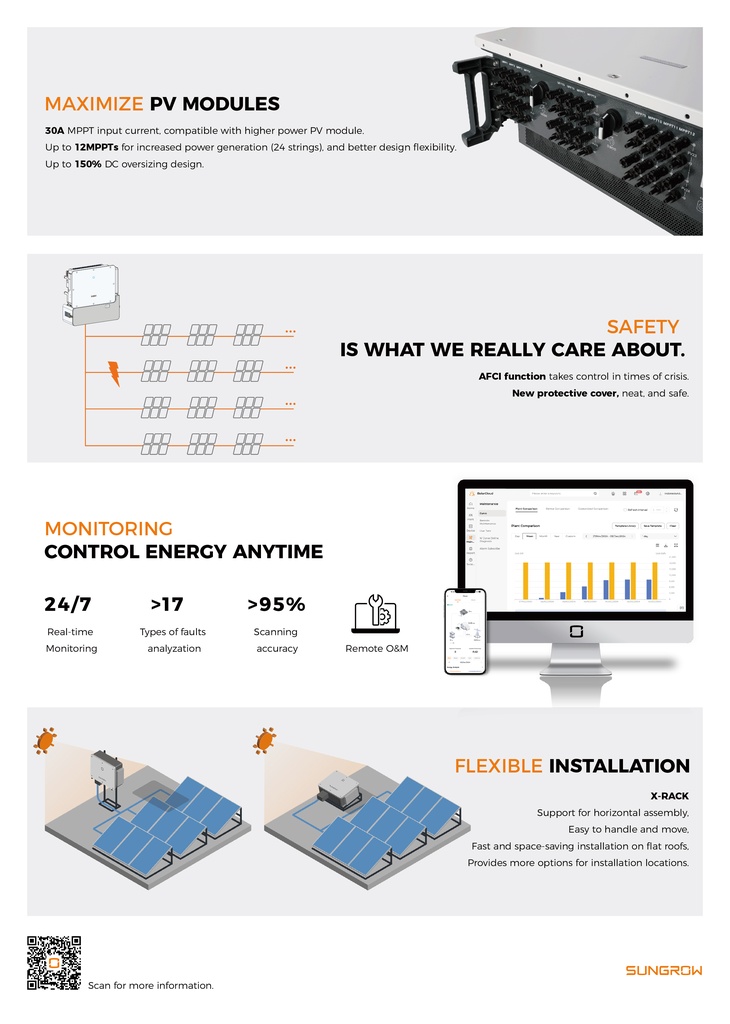

Sungrow CX P2 30kW Three Phase Solar Inverter (3 MPPT)

PRODUCT CODE: SG30CX-P2

◦ Standard 10 Year Warranty
◦ Built-in approved DC Isolator
◦ 3 MPPTs / 6 string inputs with fuse free design and string level monitoring
◦ Inbuilt type II SPD for both DC and AC
◦ EyeM4A dongle which provides 4G and WiFI connectivity (Sim Card not included)
◦ For hardwired ethernet connectivity, purchase the LOGGER1000 product
◦ Dynamic shading optimization mode
◦ Compatible with AC cables up to a max. of 240mm2 Al
◦ IP66 protection and C5 Anti-corrosion rating
◦ 15A Max. input current provides compatibility with over 500W+ PV modules
◦ 645mm W x 575mm H x 245mm D / 38kg
◦ CEC approved until 04/05/2029
Contact Us

Introducing the SG30CX-P2, a high-efficiency multi-MPPT string inverter designed for 1000 Vdc systems, ideal for large-scale solar installations. With a maximum efficiency of 98.5%, this inverter ensures optimal energy yield even in challenging conditions. The SG30CX-P2 supports up to 3 MPPTs / 6 strings, making it compatible with the latest high-power PV modules, enhancing flexibility and performance.


Key features include advanced safety mechanisms like DC and AC surge protection, arc fault circuit interrupter (AFCI), and comprehensive grid compliance with global standards. Smart operation and maintenance (O&M) capabilities such as Smart IV Curve Diagnosis and remote monitoring simplify maintenance, ensuring maximum uptime. Built with durability in mind, this inverter boasts IP66 protection and C5 anti-corrosion coating, making it suitable for diverse environmental conditions.


Choose the SG30CX-P2 for a reliable, efficient, and smart solution to your solar power needs.

Sungrow

Sungrow is a global leading inverter solution supplier for renewables with over 49 GW installed worldwide as of June 2017. Founded in 1997 by University Professor Renxian Cao, Sungrow is a global leader in research and development in solar inverters, with numerous patents and a broad product portfolio offering PV inverter systems as well as energy storage systems for utility-scale, commercial, and residential applications. With a 20-year track record of growth and success, Sungrow’s products are available in over 50 countries, maintaining a market share of around 25 % in Germany and over 15 % globally.

Sungrow Australia office has been established in Sydney since 2012. With this rapid development, Sungrow Australia has built one of the largest solar inverter manufacturers teams in Australia covering sales, technical support, projects and after sales service. The Sales team and technical support team are based in North Sydney and Sungrow warehouse is located in Pendle Hills. Over 6 years local support experience, we have built national service networks and our service contractors are ready to help installers or customers for warranty enquires.
