Tesla Powerwall 3 Single Phase 13.5kWh AC Battery with an integrated up to 11.04kW Solar Inverter (3 MPPT)

PRODUCT CODE: 1707000-30-y

◦ 14kWh (13.5kWh usable) lithium-ion battery with integrated solar inverter delivering up to 11.04kW output
◦ Three MPPT inputs supporting up to 20kW DC solar oversizing for maximum system yield
◦ Ideal for new solar + storage installs or premium battery retrofits
◦ Provides seamless whole-home backup with automatic outage detection (Backup Gateway 2 required)
◦ High continuous power output suitable for large residential loads including ducted air conditioning
◦ Integrated design reduces external inverter requirements and simplifies installation

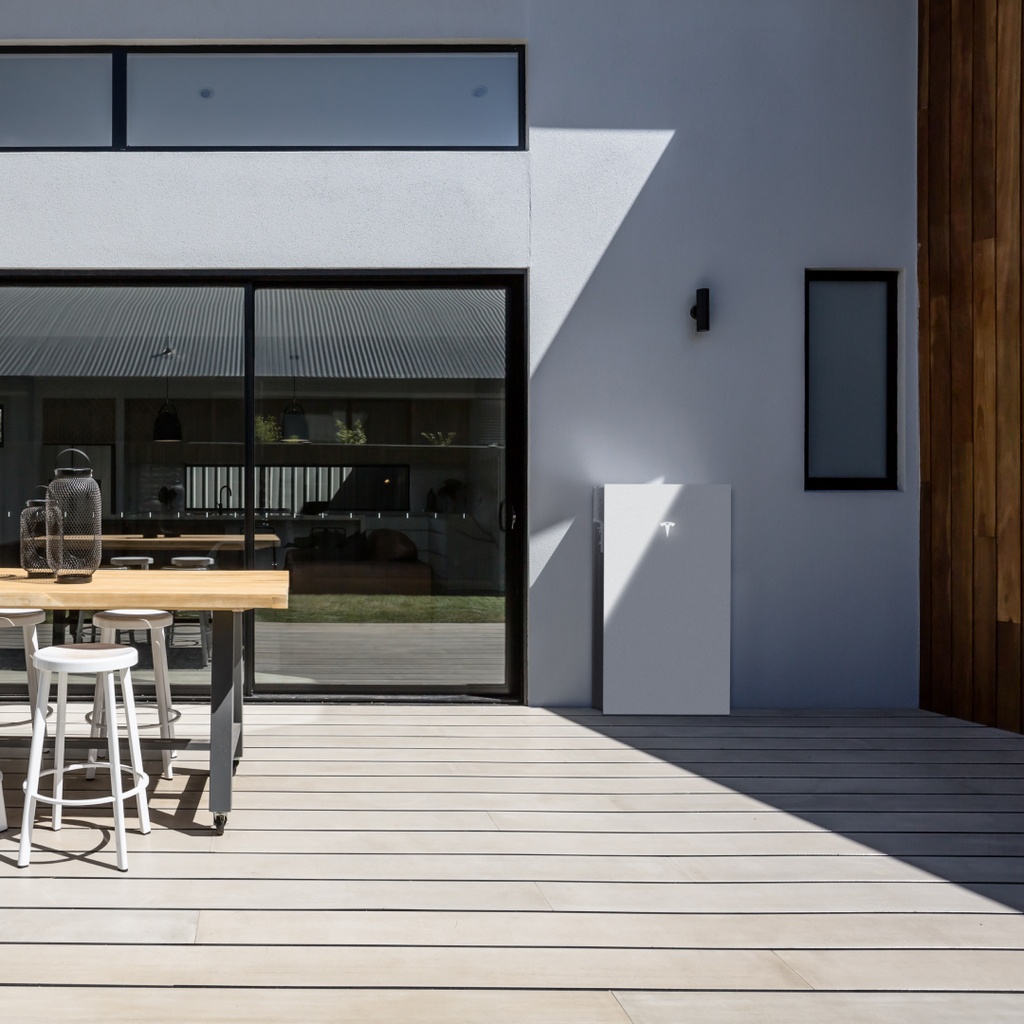

◦ Weather-rated enclosure suitable for indoor or outdoor wall or floor mounting
◦ Fully monitored and controlled via the Tesla app for real-time energy insights
◦ Expandable with Powerwall 3 DC Expansion units for higher capacity projects
◦ 1105mm H x 609mm W x 193mm D / 130kg
◦ 10 Year Warranty

◦ Ask us about our Tesla Dolly Loan Service and make every installation faster, safer and easier
◦ Powerwall 3 clamshell return process: https://b.link/ClamshellReturn
◦ This product is available to Tesla Certified Installers only. Not certified yet? You can apply through Tesla’s Energy Partner program here: https://www.tesla.com/en_au/energy_partner-with-tesla
Contact Us

The Tesla Powerwall 3 Complete Solution combines integrated solar inverter technology, powerful whole-home backup and modular expansion capability into one of the most advanced residential battery systems available. Manufactured in the USA, Powerwall 3 delivers premium performance, intelligent control and scalable storage built to support Australia’s accelerating shift toward electrification.

Key Features

  • Integrated Solar Inverter
    Built-in DC coupled inverter with 3 MPPTs supports up to 20kW of solar input, maximising energy capture while reducing system complexity.

  • Powerful Whole-Home Backup
    13.5kWh usable storage with up to 11.04kW continuous output and 185A motor start capability to run large appliances and air conditioning during outages.

  • Automatic Backup Control
    Backup Gateway 2 detects grid outages instantly and seamlessly transitions the home to backup power for uninterrupted supply.

  • Scalable Storage Design
    Start with 13.5kWh and expand in 13.5kWh increments using Powerwall 3 Expansion Units, scaling up to 54kWh per Powerwall 3.

  • Built to Handle Australia’s Extremes
    Designed to thrive in Australia’s harsh environment from snow-covered alpine regions to the heat of the outback. Operating range from -20°C to 50°C, IP67-rated battery and electronics, flood resistant up to 0.6m, suitable for indoor or outdoor installation.

  • Smart Energy Management
    Monitor and optimise performance in real time through the Tesla App with time-of-use optimisation, backup reserve settings and EV charge-on-solar functionality.

  • Premium Build Quality
    Glass front design with cast aluminium chassis, actively fan-cooled thermal management and Tesla engineered power electronics.

  • Long-Term Manufacturer Backing
    10-year warranty with minimum 70% capacity retention at year 10 and unlimited cycles under standard self-consumption operation.


Why Choose the Tesla Powerwall 3 Complete Solution?

Designed for households embracing electrification, EV charging and larger solar systems, Powerwall 3 delivers premium performance, seamless backup protection and flexible expansion in one integrated platform. Backed by Tesla’s global energy ecosystem and proven engineering, it is a future-proof storage solution built to power everything today and scale for tomorrow.

Tesla Energy

Tesla's mission is to accelerate the world's transition to sustainable energy. Tesla is building a world powered by solar energy, running on batteries and transported by electric vehicles. Tesla designs sustainable systems that are massively scalable - resulting in the greatest environmental benefit possible. Tesla's energy generation and storage products like Powerwall work together with electric vehicles to amplify their impact. With over 1,000,000 Powerwalls installed globally across 30 countries, Tesla is helping households generate, store and use their own clean energy, day or night, in any whether, at lower cost.
