The SAJ HS5 EK70 is a premium all-in-one solar and battery storage solution combining a high-performance hybrid inverter, modular 9kWh LiFePO4 battery storage, whole-home backup and intelligent energy management in one streamlined system.
Available in both single-phase and three-phase configurations, the HS5 EK70 is designed for fast installation, flexible system sizing and reliable backup power. Its modular blind-mate design minimises external battery cabling while the integrated 63A bypass and automatic transfer functionality simplify whole-home backup without the need for a separate backup gateway.

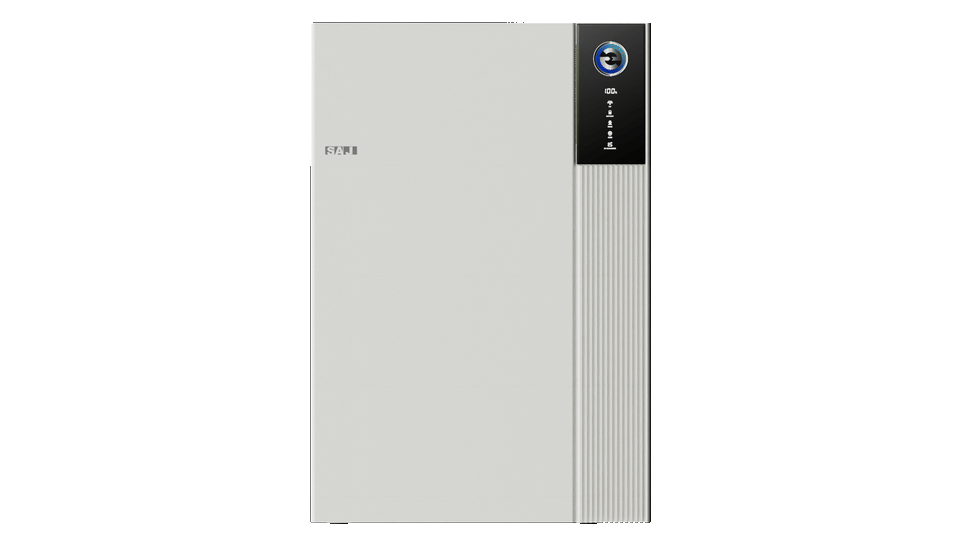

Each 9kWh battery module uses premium 314Ah LiFePO4 cells and provides 9kWh of usable capacity with 100% depth of discharge. Up to six battery modules can be connected per system, providing up to 54kWh of storage capacity. Individual DC/DC optimisation allows each battery module to be independently managed, supporting efficient operation and straightforward future expansion.
Key Features
◦ 5kW, 8kW and 10kW single-phase inverter options
◦ 10kW, 15kW and 20kW three-phase inverter options
◦ 9kWh LiFePO4 battery modules with 314Ah cells

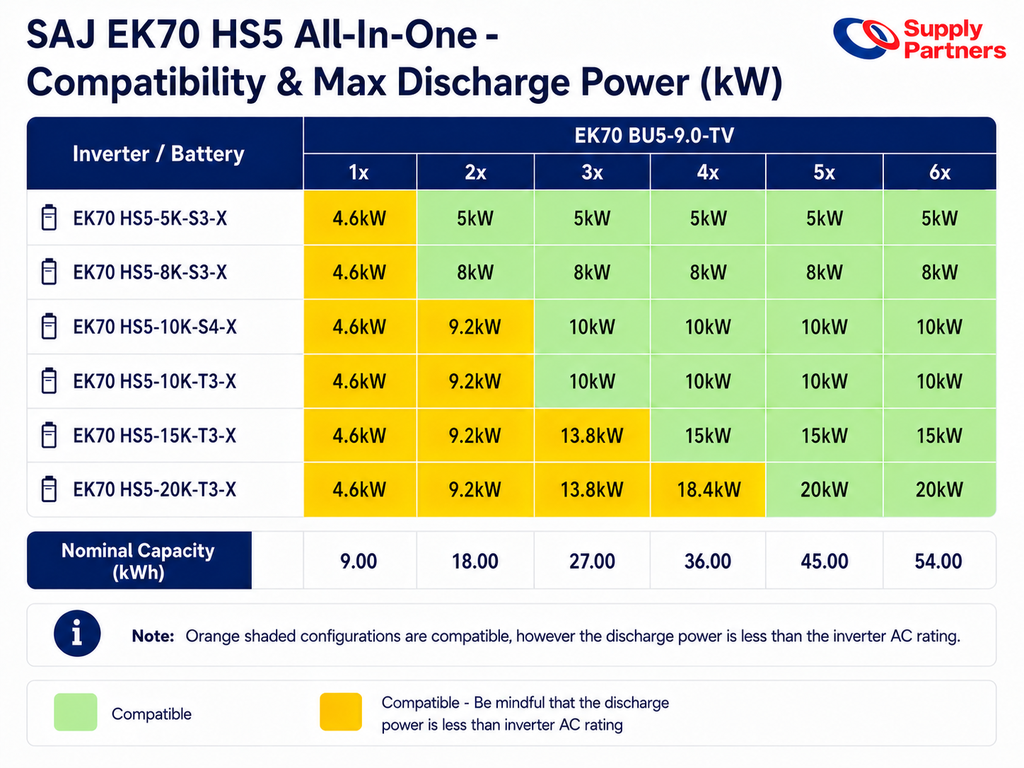

◦ Expandable to six battery modules / 54kWh
◦ 100% usable battery depth of discharge
◦ 10,000-cycle battery rating*
◦ Built-in DC/DC battery optimisation
◦ Integrated 63A whole-home backup bypass
◦ ≤10ms backup switching
◦ Up to 2x rated backup output for 10 seconds
◦ Wireless-Pro smart meter
◦ 3-step app commissioning and one-click self-diagnosis
◦ elekeeper 5.0 intelligent energy management
◦ AI Saving 3.0 and VPP-ready functionality
◦ Integrated AFCI and multi-layer system protection
◦ IP66 rated
With powerful backup capability, intelligent energy management and a clean modular design, the SAJ HS5 EK70 is an ideal solution for homeowners looking to maximise solar self-consumption, reduce grid dependence and prepare their home for future energy needs.
*Cycle life based on battery manufacturer test conditions.
